Email Tables Made Easy with Power Automate

Anitha SantoshFinance & Operations1 month ago16 Views

Data can be presented in various formats, such as images, graphs, or tables. Since data is a valuable asset for any organization, it is crucial to ensure the audience can easily comprehend it

I had an assignment in Power Automate where the data from the Business event should be extracted , formatted in a tabular column and email the same.

In this post, I will demo the technique to convert the data in String sent as a table via Email.

Initialize a variable with your string.

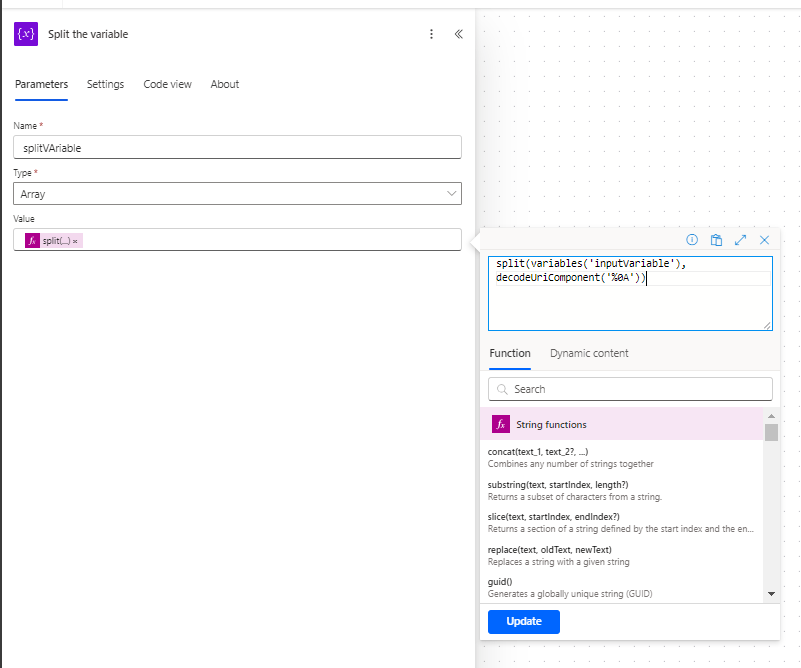

Declare another variable of type ‘array’ and using split function , create substrings for each line.

split(variables('inputVariable'), decodeUriComponent('%0A'))

Output of the step will create an array

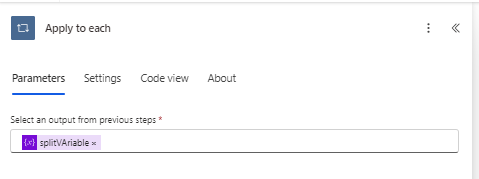

Declare a new array variable . Using For-loop, read the contents of the above array and append the contents to the new array variable as a Attribute-Value pair.

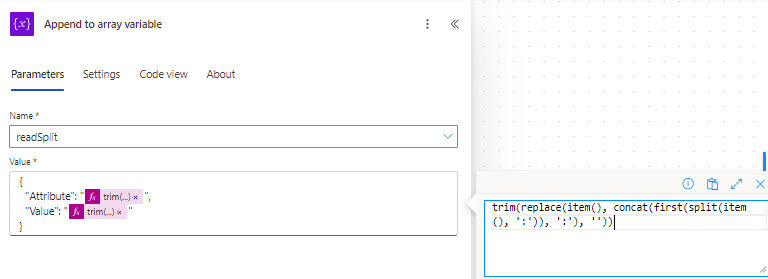

This is achieved using Append to Array variable.

trim(first(split(item(), ':')))

trim(replace(item(), concat(first(split(item(), ':')), ':'), ''))

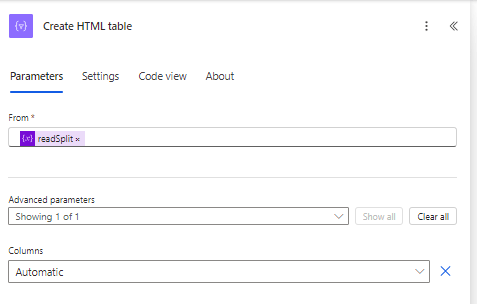

Next step is creating an HTML table and setting the Columns as automatic.

It is also possible to choose the columns

variables('ReadSplit')[0]['Value']
variables('ReadSplit')[1]['Value']
variables('ReadSplit')[2]['Value']

The output of the HTML table generates a table without proper format.

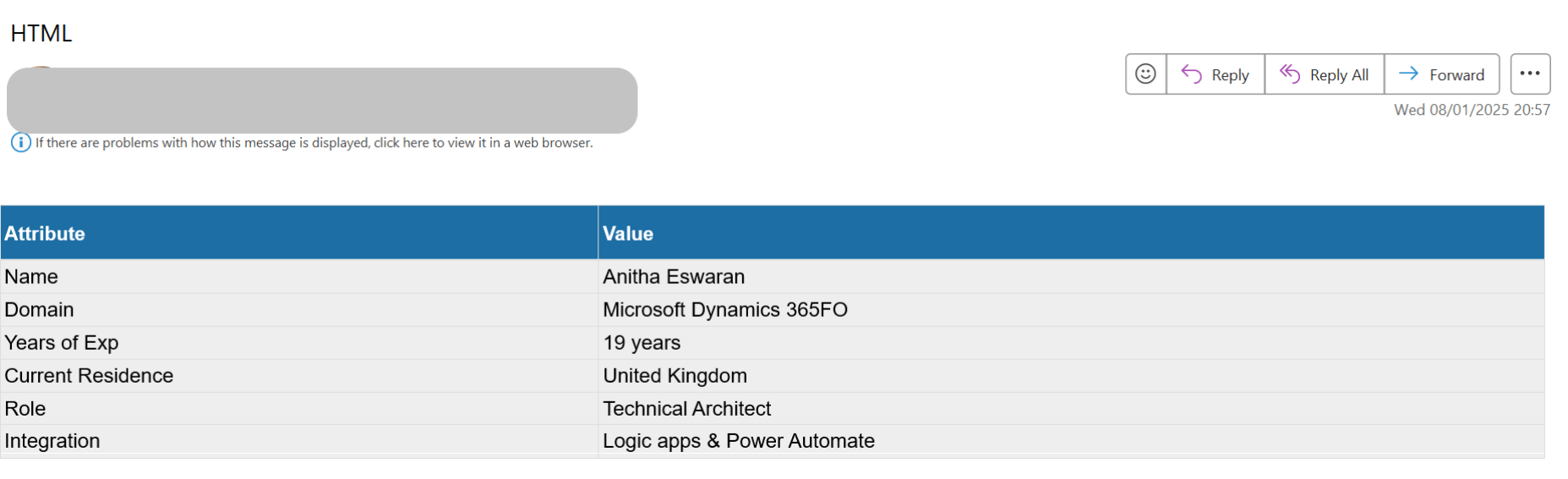

In order to decorate with border, use a compose function and add the below css

<style>
Table {
  font-family: Arial, Helvetica, sans-serif;
  background-color: #EEEEEE;
  border-collapse: collapse;
  width: 100%;
}

Table td, Table th {
  border: 1px solid #ddd;
  padding: 3px 3px;
}

Table th {
  font-size: 15px;
  font-weight: bold;
  padding-top: 12px;
  padding-bottom: 12px;
  text-align: left;
  background-color: #1C6EA4;
  color: white;
}
</style>
